MULTI USE GRINDING MACHINE-GM SERIES

  • MULTI USE GRINDING MACHINE-GM SERIES

Features:

This series Multi-use grinder features with functions of universal cylindrical grinding machine and universal tool grinding machine, it not only can grind internal/outside cylindrical or conical workpiece and horizontal plane, vertical plane, slanting plane or groove, but also can grind general tools, like milling tools, reamers, slotting cutter, lathe tool or planer tool. It can grind straight flute hob, drills, etc. by optional accessories of machine.

Wheel spindle rotate smoothly, and easy for adjustment. Worktable can be feed by hydraulic or manual assisted with hydraulic, easy for operation.

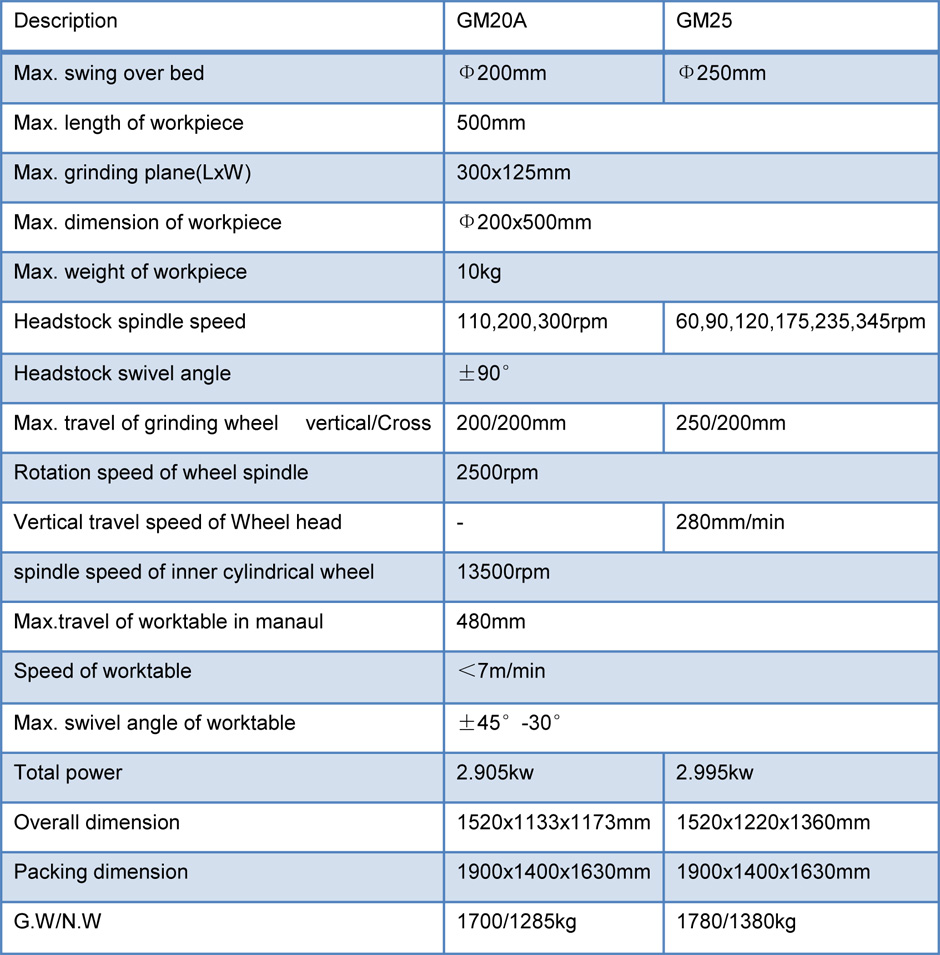

-Specification:

MULTI USE GRINDER-GM Series.jpg

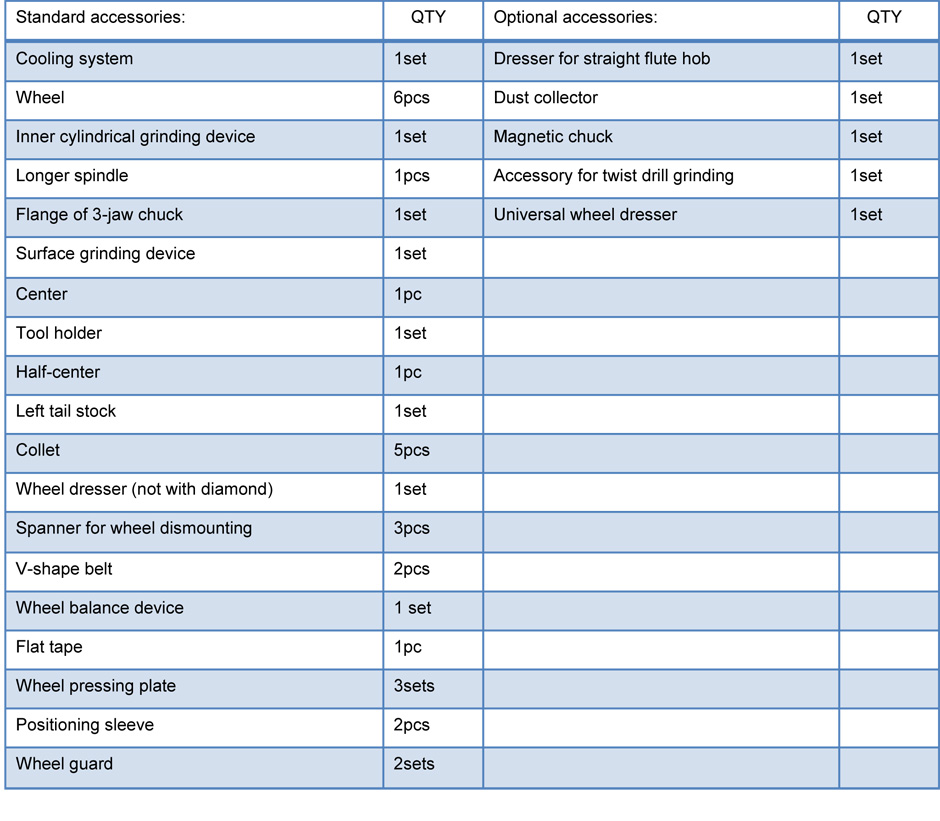

-Standard and optional accessories:

MULTI USE GRINDER-GM Series.jpg

-Work accuracy:

Roundness:    0.0015mm (cylindrical)    0.0025mm (internal surface)

Cylindricality:  0.005mm (cylindrical)

Roughness:     Ra0.32μm (cylindrical)   Ra0.63μm (internal surface)
