square type vertical drilling machine ,vertial dril ,drilling and tapping machine

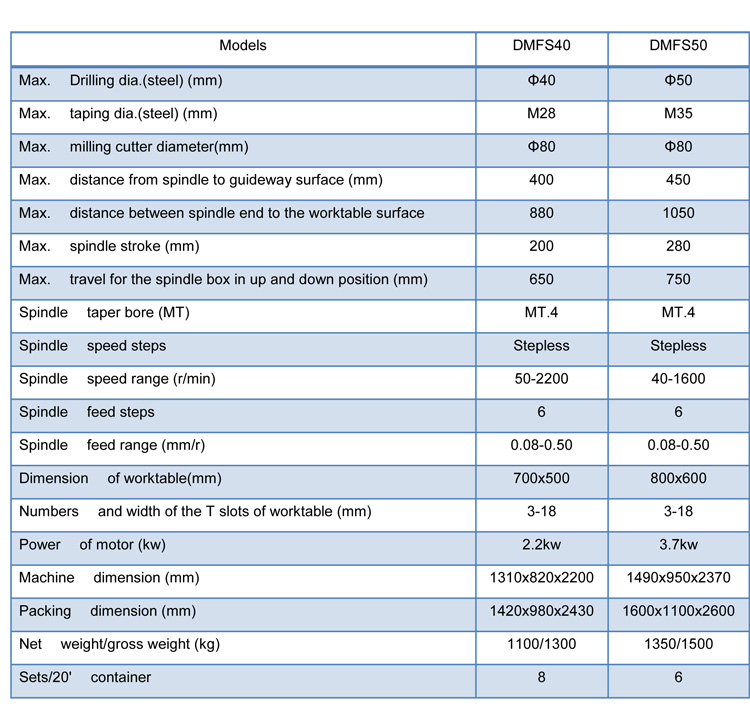

Specification:

Features:

●The machine is suitable for 220V or 575V dual voltage, three phase

●Single-speed motor, withGermanyoriginal Lenze transducer for spindle speed change;

●Strengthened spindle

●With milling function

●Spindle box could be moved up and down, with new type and safety nut

●Trchoid thin oil lubrication is available for spindle box. Manual lubrication for guide and nut

●Digital readout for spindle speed and cutting depth

●Sufficient travel distance with enough working space

●With coolant and protection device

●Imported electrical components with CE, CSA and UL sign are to be adopted in the key place

●Φ6-Φ16mm collet, milling cutter shank, cross table, collet shank and rotary table are all available as optional accessories

Standard accessories:

Key type drill chuck; Connecting bar for drill chuck; Shaft sleeve for taper shank tool; Wedge for taper shank tool; Double open end spanner.
