VERTICAL DRILLING MACHINE -DMFC SERIES
- Details
- Machine feature

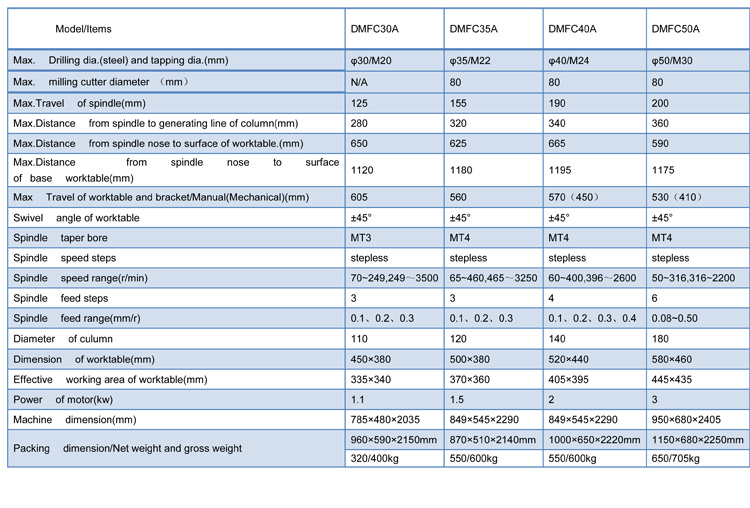

Specification:
Features:
●3-phase with dual voltage for 220V-575V collocation
●All main parts made with high quality cast iron
●Single-speed motor, Germany original Lenze transducer spindle stepless timing
●Coolant system and fender device
●With milling function
●Strength spindle, large diameter column
●Worktable could be rotated and could be inclined ±45°
●Motor driven lifting of worktable
●Digital readout for the display of speed and cutting depth
●Micro feed is available
●Trochoid lubrication pump
●Main electrical components with CE, CSA and UL Standard
●The machine equipped with electromagnetism clutch
●Attached accessories Ф6-Ф16mm collect, handle of milling cutter, cross worktable, handle of collet, nut for T-slot, inner hexagon bolt
Standard accessories:
Key type drill chuck; Connecting bar for drill chuck; Shaft sleeve for taper shank tool; Wedge for taper shank tool; Double open end spanner.
