pillar type vertical drilling machine .pillar driller.round coloum vertical drilling machine

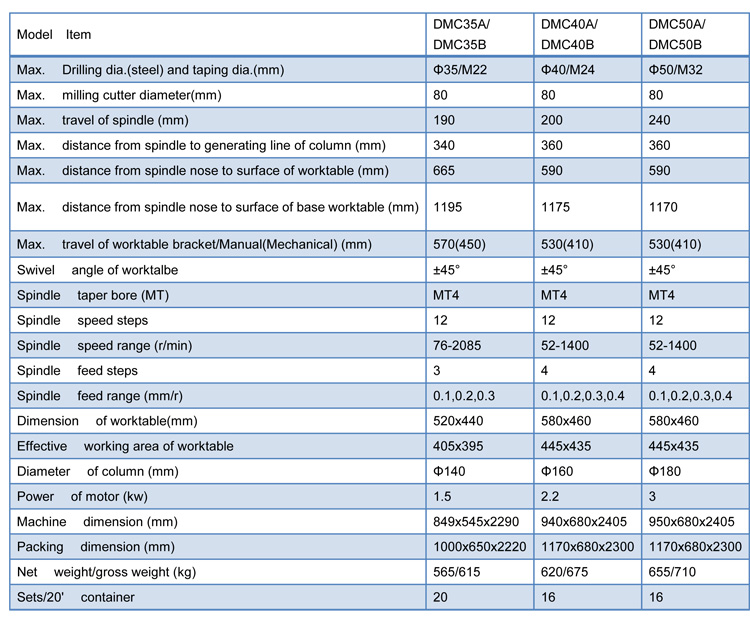

Specification:

Features:

●3-phase with two-voltage for 220V-575V collocation

●All main parts made with high quality cast iron

●Single-speed motor, 12 step gear shift

●With milling function ('M' in model)

●Strength spindle, large diameter column

●Worktable could be rotated and could be inclined ±45°

●Motor driven lifting of worktable

●Digital readout for the display of speed and cutting depth

●Micro feed is available

●Trochoid lubrication pump

●Main electrical components with CE, CSA and UL Standard

●With unload tool device and coolant, spindle guard

●Attached accessories Ф6-Ф16mm collet, handle of milling cutter, cross worktable, handle of collet, nut for T-slot, inner hexagon bolt

●DMC-A: electromagnetism clutch feed; DMC-B: mechanical feed.

Standard accessories:

Key type drill chuck; Connecting bar for drill chuck; Shaft sleeve for taper shank tool; Wedge for taper shank tool; Double open end spanner.
