MELTING FURNACE-MF SERIES
- Details
- Machine feature

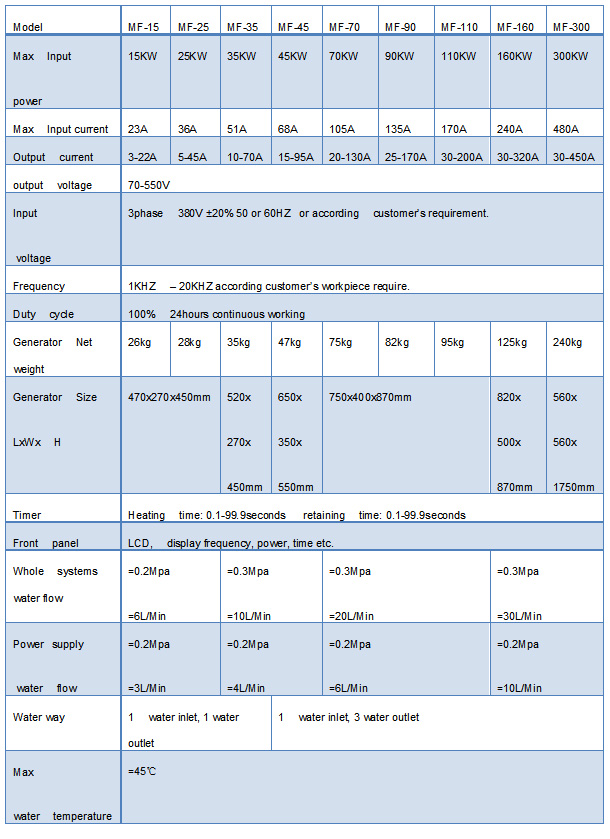

Main Specifications:
Features:
1. All-solid-state IGBT frequency conversion and power adjustment, soft-switching responance dual-control and frequency automatic tracking technology is the reliability of guarantee. module and soft switching inverting technologies are used in the production of the generator, higher reliability can be achieved;
2. Small size and portable , compared with SCR controlled machine, only 1/10 working space is needed, greatly reduce occupation space;
3. High efficiency and energy saving: a high power factor and power efficiency within the scope of full power.
4. With wide frequency range from 1-20KHZ automatic trackin ability, no need adjustment at scene.
5. 100% duty cycle , 24hours continuous working ability at maximum power.
6. Constant output voltage or power control modes are alternative;
7. Full display of output power, output frequency, output voltage and current.
8. The timer function: heating time and retaining time: 0.1~99.9second.
Main models and recommend applications:
Model | Max. melting capacity of Steel ,stainless steel | Max melting capacity of Gold, silver, copper, bronze | Max melting capacity of aluminum |
MF-15 15KW furnace | 3kg | 10kg | 3kg |
MF-25 25KW furnace | 5kg | 20kg | 5kg |
MF-35 35KW furnace | 10kg | 30kg | 10kg |
MF-45 45KW furnace | 18kg | 50kg | 18kg |
MF-70 70KW furnace | 25kg | 100kg | 25kg |
MF-90 90KW furnace | 40kg | 120kg | 40kg |
MF-110 110KW furnace | 50kg | 150kg | 50kg |
MF-160 160KW furnace | 100kg | 250kg | 100kg |
MF-240 240KW furnace | 150kg | 400kg | 150kg |
MF-300 300KW furnace | 200kg | 500kg | 200kg |
The composing of medium frequency induction melting furnace:
1. Medium frequency induction heating power supply
2. Melting furnace
3. Compensation capacitor
4. accessories.
Features:
1. Installation and operation can be very easily learned;
2. Portable and light weight; occupies less than 1.0 square meters;
3. 24hours no-stop melting ability;
4. High effiency, Energy saving and environmental protection;
5. It's easy to change furnace to melt different materials.
Characteristics of melting by medium frequency machine
1. better heating penetration and even temperature inside the melting metal.
2. medium frequency filed force can stir the melting pool to achieve better melting quality.
Melting the maximum quantity by the recommended machine according to above data, the first melting when the furnace is cold, and it will take 20minutes fo the preheating, when the furnace is already hot, the melting time is about 20-30minutes per furnace.
