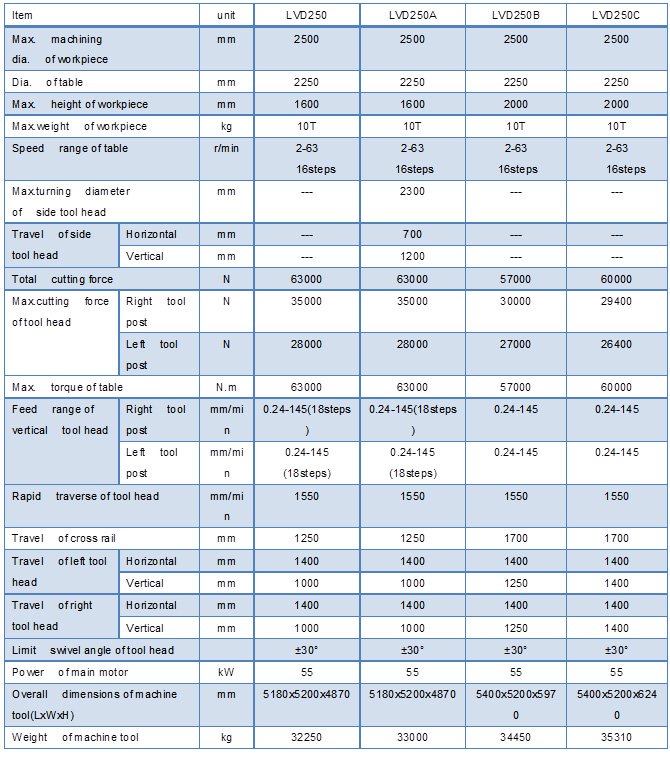

DOUBLE COLOUM VERTICAL LATHE MACHINE -LVD250
- Details
- Machine feature and accessories
Features:
This machine is universal machine or digital display machine, it can finish such machining like inner and external cylindrical surface cutting, inner and outer taper surface cutting, flat surface cutting, as well as grove cutting, cutting -off, etc.
Accessories delivered with machine(Standard accessories)
No. | name | specification | qty. | remark |
1 | chuck jaw | 4 | Holding work piece | |
2 | tool holder | 40x50 | 1 | tool holding |
3 | tool holder | 40x50 | 1 | tool holding |
4 | arbor | 20x20 | 1 | holding boring tool |
5 | socket spanner | S=24 | 1 | fixing work piece |
6 | leveling wedge | 20 | leveling machine | |
7 | foundation bolt | M24x440 | 4 | installing the base of main motor |
8 | nut | M24 | 16 | machine installing |
9 | bolt | M24x140 | 4 | installing the base of main motor |
10 | foundation bolt | M24x630 | 16 | machine installing |
11 | washer | 24 | 20 | machine installing |
12 | single head spanner | S=19 | 1 | Swiveling the swiveling carriage |
13 | single head spanner | 65 | 1 | fixing the nut of cross rail |
14 | inner hexagonal spanner | 6 | 1 | oil drainage of cross rail |
15 | inner hexagonal spanner | 14 | 1 | oil drainage on the top girder |
16 | single head spanner | 90-95 | 1 | nut clearance adjusting on the rail head |
17 | hexagonal socket bending spanner | 32 | 1 | fixing the swiveling carriage |
18 | hexagonal socket bending spanner | 36 | 11 | fixing the carriage |
19 | square socket bending spanner | 12 | 1 | to clamping chip on the tool |
20 | square socket bending spanner | 24 | 1 | fixing the ram and tool |
21 | inner hexagonal spanner | 12 | 1 | disassembling the tool holder |
22 | square socket spanner | 22 | 1 | fixing ram and tool holder |
Optional accessories:
(1). Threading device;
(2). Taper turning device;
(3). Grinding device;
(4). Digital display device;
(5). Coolant system;
(6). CNC vertical lathe can be equipped with a function of turning in steady velocity.
