HORIZONTAL BORING MACHINE-BH-SERIES
- Details
- machine feature

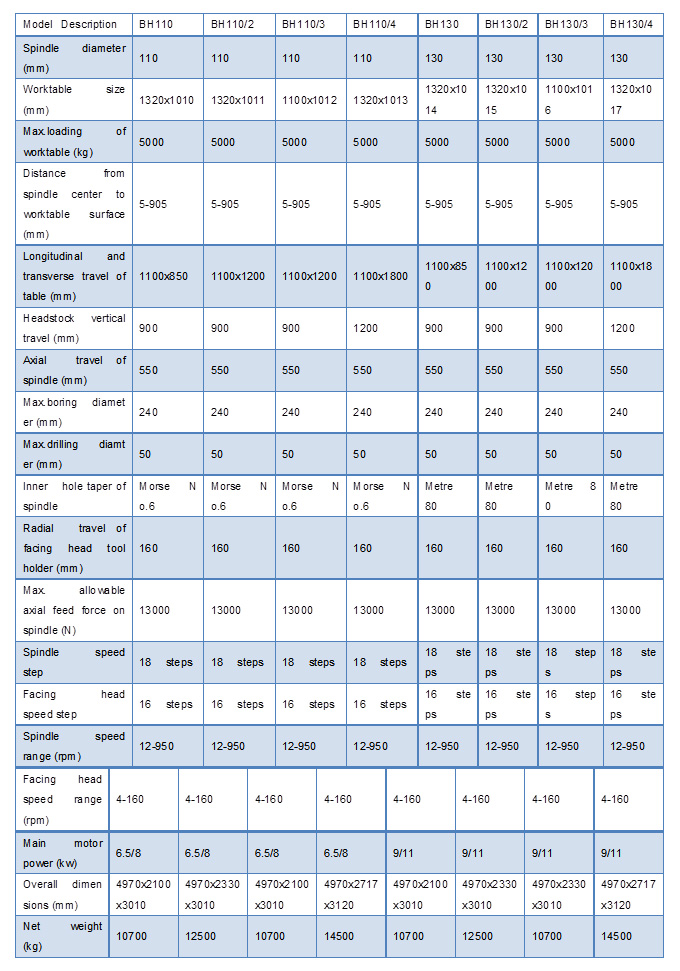

Specification:
Features:
-The spindle system features strong rigidity, it’s suitable for rough machining and force cutting, hence improve machining efficiency.
-The machine bed, column, upper and lower saddle all adopt rectangular guideways with PTFT on the surfaces, featuring wear-resisting, press-resisting and good stability.
- Radial tool holder of facing head on the headstock head for radial machining.
- Optional pulley support for thread machining
-Rapid traverse of all movable part.
- Rotary worktable is positioned with pin at 00, 900, 1800 and 2700 calmping manually, featuring exactly positioning and high accuracy
- Counterweight balance for headstock, with stable motion
- Safety device will be tripped when overload feeding, avoid damaging workpiece and tool
- Every movable part is trimmed by hand and operated by hand-wheel. The hand-wheel retracts automatically when power feeding or rapid traverse of any movable part, so as to make operation conveniently and reliably.
- Optional digital readout device, reading accuracy 0.01mm, positioning accuracy 0.05mm, direct reading, improve work efficiency and reduce cost.
Optional accessories:
Boring tool rod; Universal boring rack; Facing head frame; Spanner.
